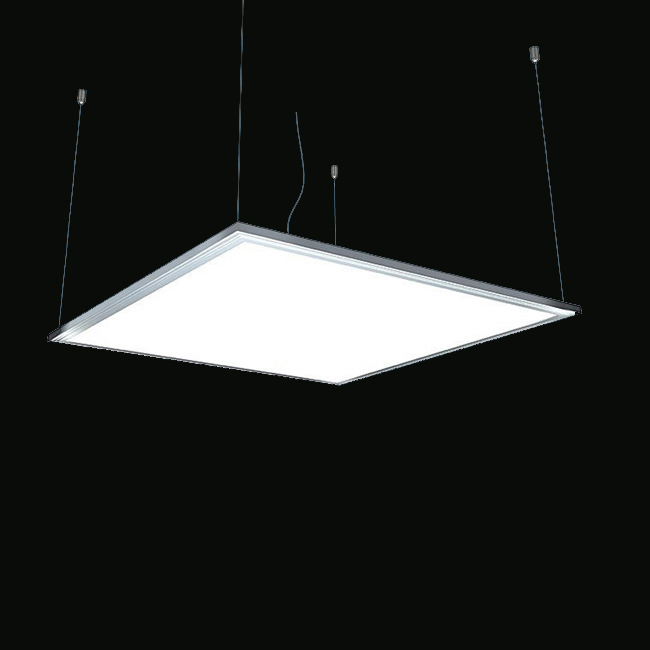

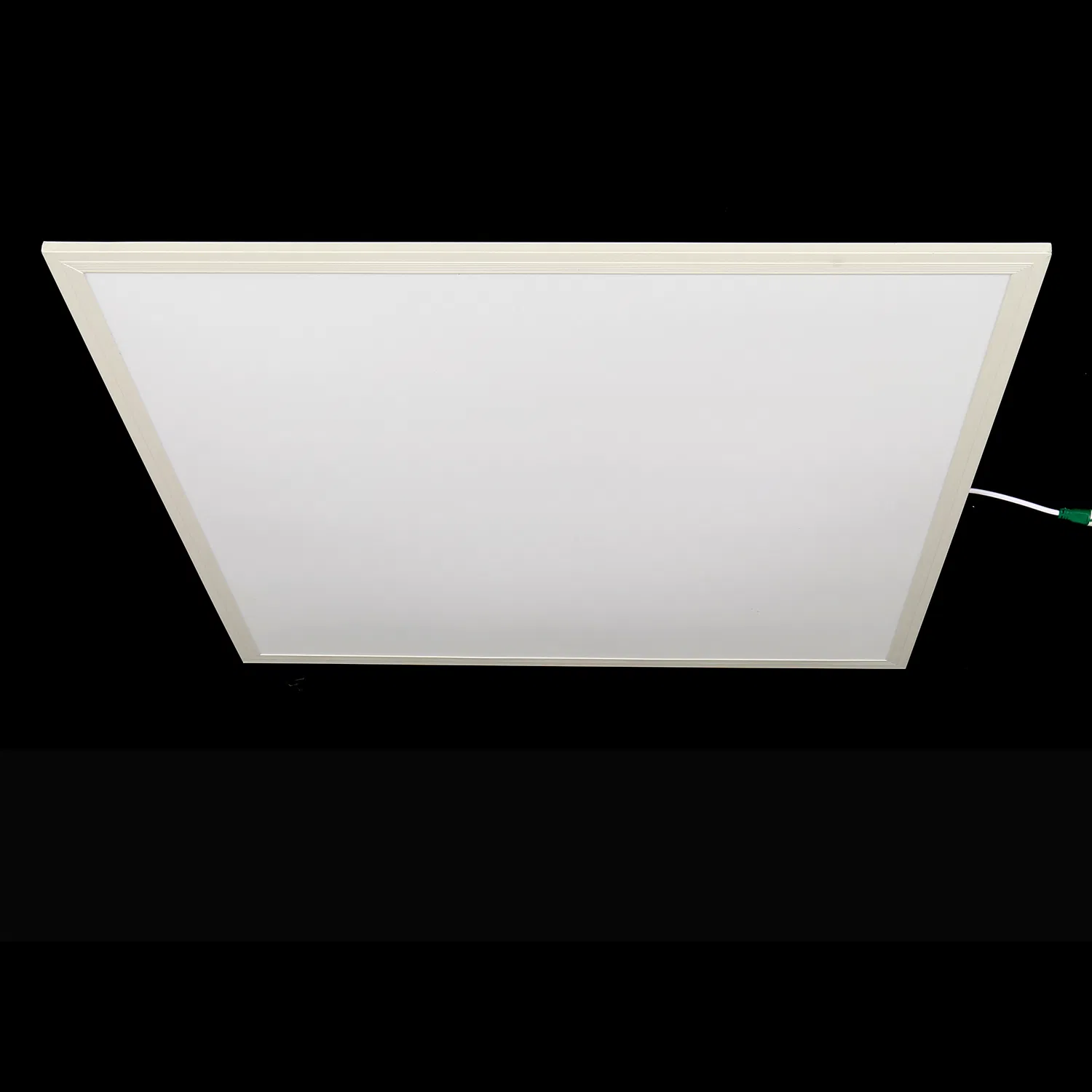

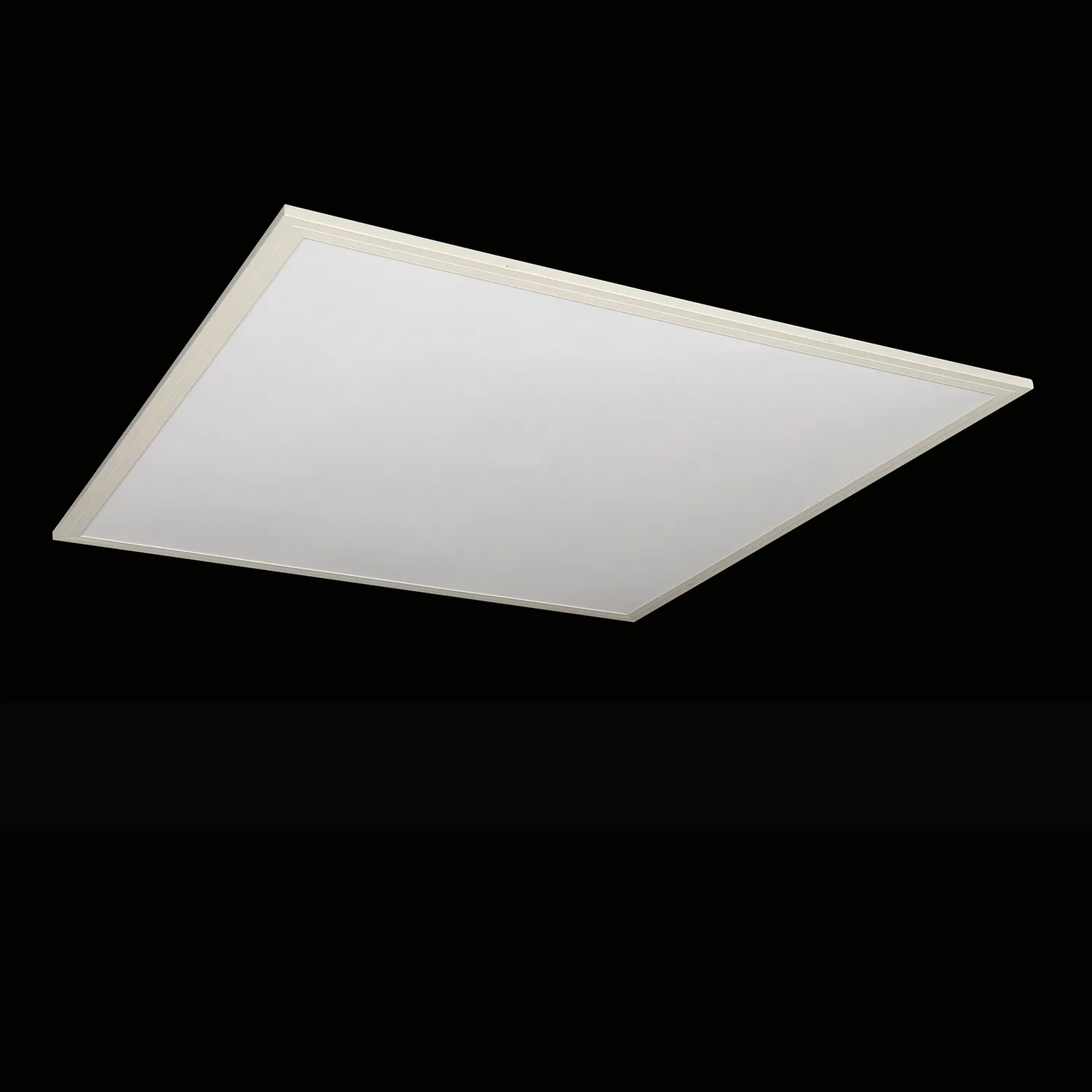

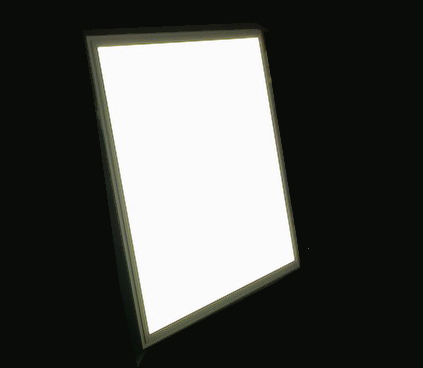

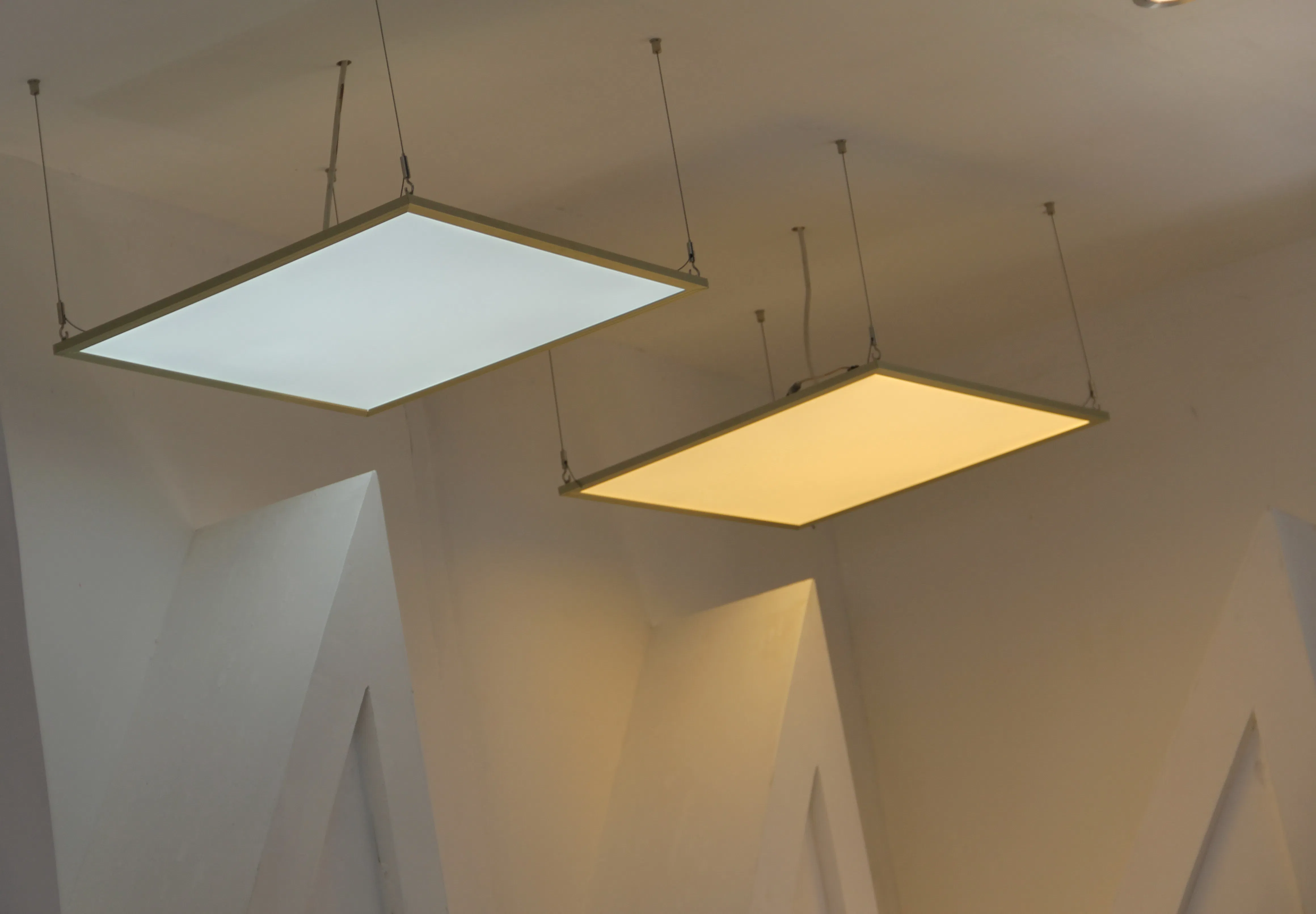

40W Edge-Lit 595*595*10 3years Warranty Dimmable Aluminum Slim LGP LED Panel Light for Office, School, Hospital Engineering Projects

1 / 5

40W Edge-Lit 59559510 3years Warranty Dimmable Aluminum Slim LGP LED Panel Light for Office, School, Hospital Engineering Projects

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Overview & Basic Info

Model NO.

GEP6060-40W

Emitting Color

Ww/Nw/Cw

Appearance

Square

Type

Recessed

Certification

CE, RoHS, ISO9001, CCC

Voltage

85V-265V

Watt

40W

Beam Angle

120°

Material

Aluminum Trim + Acrylic LGP

Warranty

3 Years

Lumen

100lm/W

Specification

595*595*10mm

Product Description

40W Edge-lit Slim LED Panel Light (595*595*10mm)

High power factor dimmable Aluminum slim LGP LED Panel Light designed for office, school, hospital, and professional engineering projects.

Item No.	Power (W)	SMD Chip	CRI	Lumens (lm)	Dimension (mm)	Cut-out (mm)	Q'ty /CTN
GEP6060-36W	36W	2835*180PCS	>80	3600	60060010	585*585	5
GEP6060-40W	40W	2835*200PCS	>80	4000	59559510	585*585	5
GEP6060-48W	48W	2835*240PCS	>80	4800	60060010	585*585	5
GEP30120-36W	36W	2835*180PCS	>80	3600	300120010	285*1185	5
GEP60120-72W	72W	2835*360PCS	>80	7200	600120010	585*1185	3

Key Features

✔ Aluminum trim slim recessed design
✔ Edge-lit Epistar SMD Led chips, high CRI
✔ 3mm PMMA acrylic light guide plate, no dark spots
✔ No UV/IR radiation, soft and flicker-free light
✔ Options: Triac, 0-10V or DALI dimmable
✔ Thick aluminum housing for excellent heat dissipation
✔ Long lifespan up to 50,000 hours
✔ Energy saving up to 60% vs fluorescent lamps

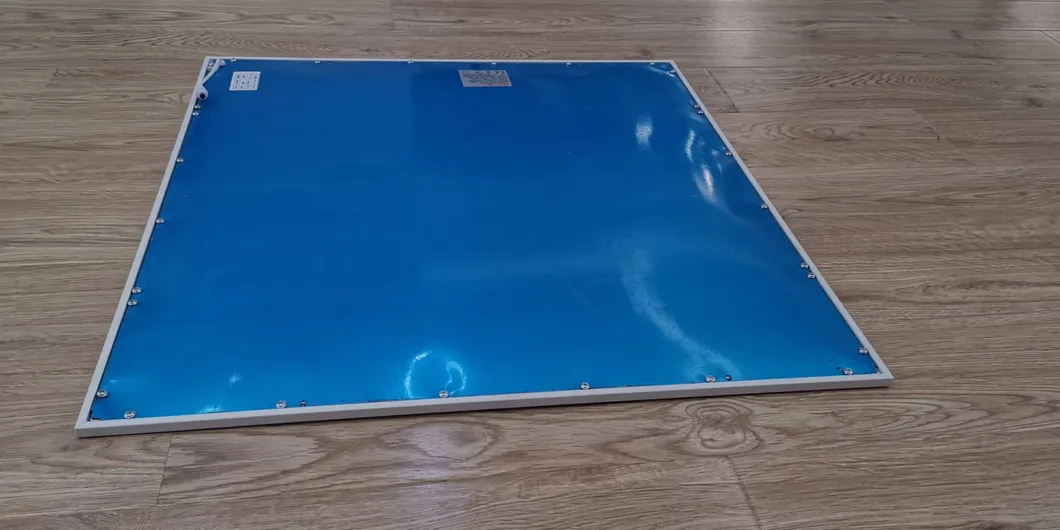

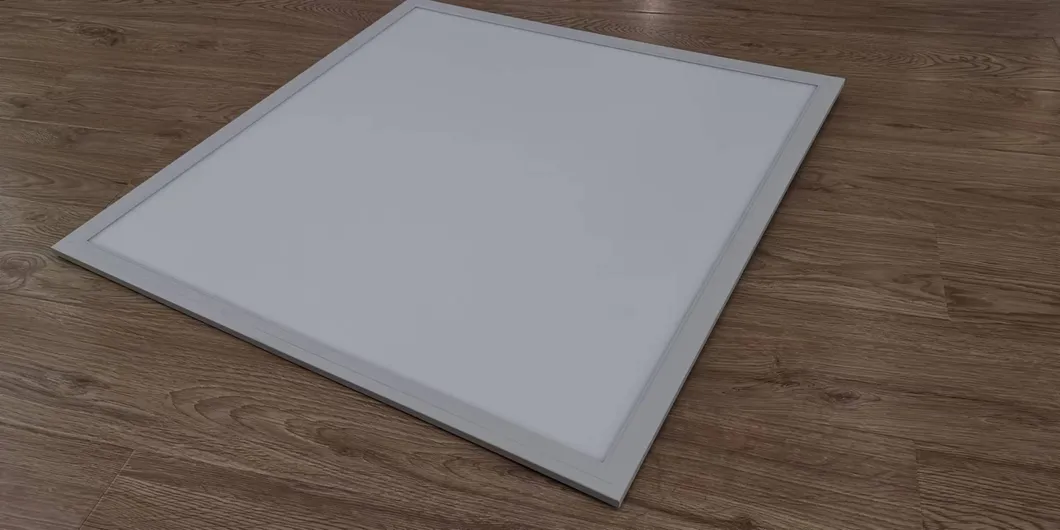

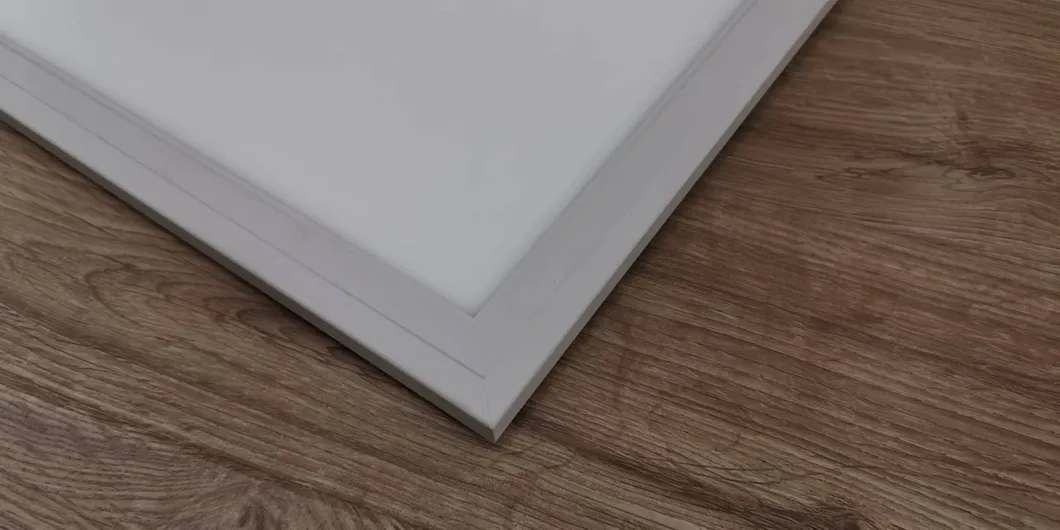

Detailed Photos

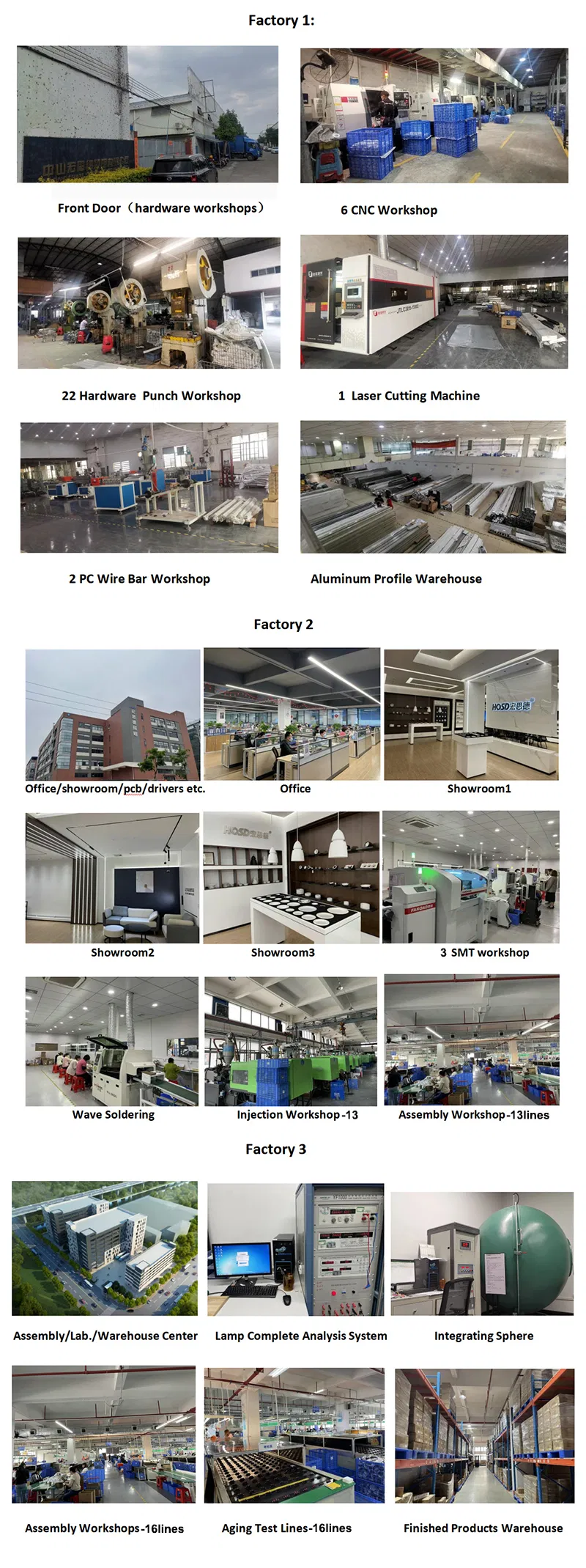

Manufacturing Excellence

Frequently Asked Questions

Q1: Are you a professional factory manufacturer?

Yes, we are a purely professional original manufacturer with three specialized lighting factories.

Q2: Can you develop OEM new products?

Absolutely. Our structural engineers can create CAD and 3D drawings to develop new products based on client requirements using our in-house workshops for injection and die-casting.

Q3: What is the lead time for samples and bulk orders?

Standard samples take 3-5 days, while batch bulk orders typically require 2-4 weeks depending on the order volume.

Q4: How do you ensure product quality?

Our facility follows ISO9001 standards. 100% of finished products undergo rigorous aging tests before packaging. We offer a 2-5 year guarantee on all products.

Q5: What is your process for handling warranty claims?

For small quantities, we send free replacements with your next order. For batch issues, we repair and resend them or negotiate the best mutual solution.

Q6: Do you provide photometric and test reports?

Yes, we have our own laboratory and can provide IES reports, photometric reports, and LM80 reports for all indoor and outdoor lighting.
