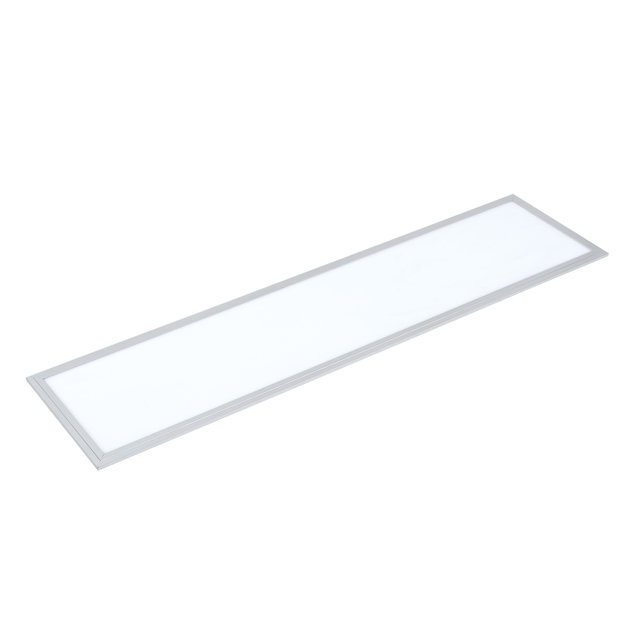

Ugr<19 300*1200mm 48W Side Light Ultra Slim Surface Mounted LED Panel Light

1 / 3

Ugr<19 300*1200mm 48W Side Light Ultra Slim Surface Mounted LED Panel Light

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

Emitting Color

Cw/Ww

Dimmable

Without Dimmable

Appearance

Square

Type

Recessed

Base Material

Aluminum

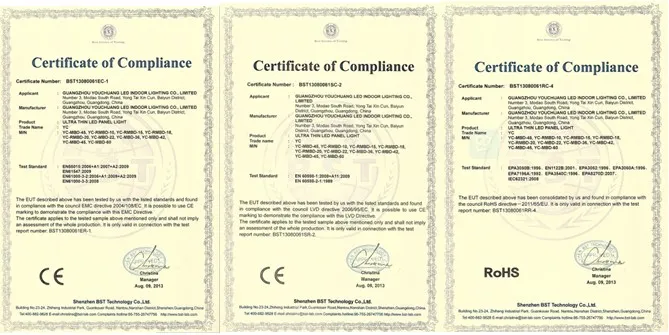

Certification

CE, RoHS

Voltage

100-240V

Beam Angle

120°

Size

300mm*1200mm

Power

48W

Thickness

10mm

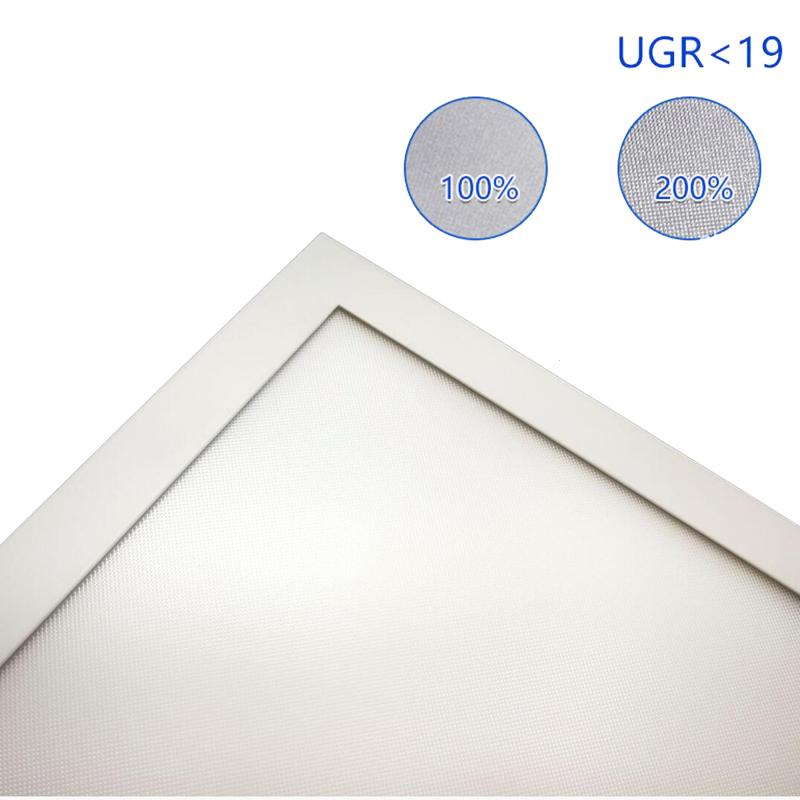

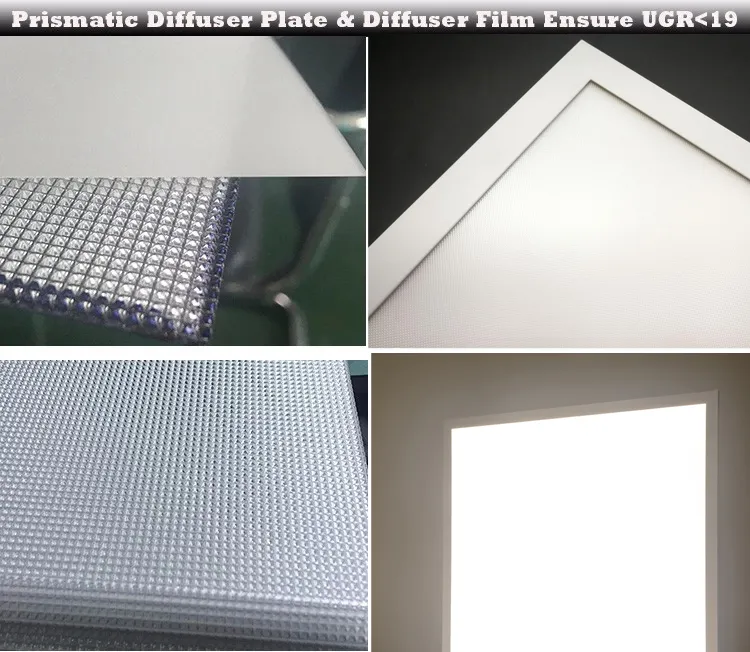

UGR

<19

CRI

>80

Driver

CE Driver/Lifud

Product Overview

UGR<19 300*1200mm 48W Side Light Ultra Slim Surface Mounted LED Panel

⚡ Instant start, no flicker, no noise, no UV, and Lead-free construction.

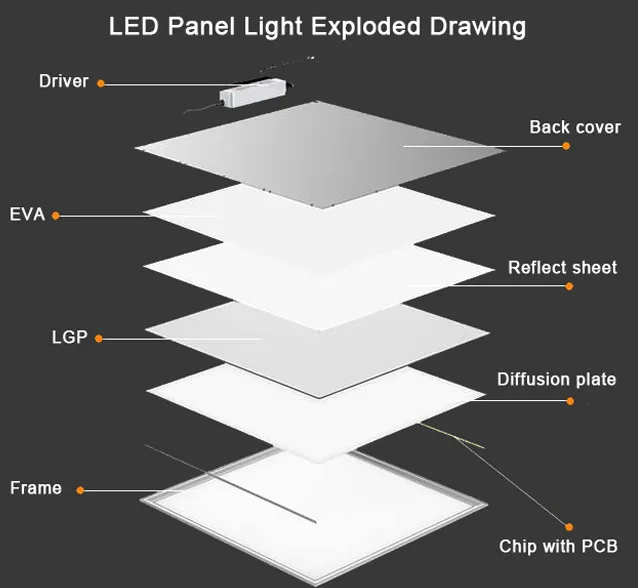

💎 Ultra-thin 10mm profile using Mitsubishi LGP for high efficacy >80lm/w.

🛡️ Unique patent design with isolated constant current driver for long lifespan.

❄️ 6063 Aluminum alloy housing provides excellent heat dissipation.

📉 Energy efficient: Save up to 70% energy with Power Efficiency ≥0.88.

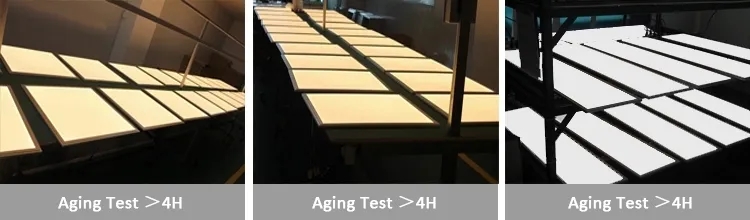

✅ Fully tested: EMC, IES, High Voltage, and Integrating Sphere tests passed.

Technical Specifications

LED Panel Light Series Details
Voltage	AC85-265V 50/60Hz

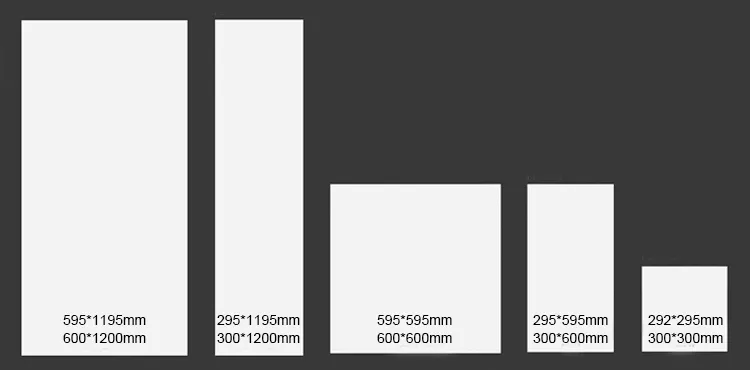

Standard Sizes	300*300mm	300*600mm	600*600mm	300*1200mm
	295*295mm	295*595mm	595*595mm	600*1200mm
Chip & Driver	SMD2835 / 4014		CE Driver / Lifud

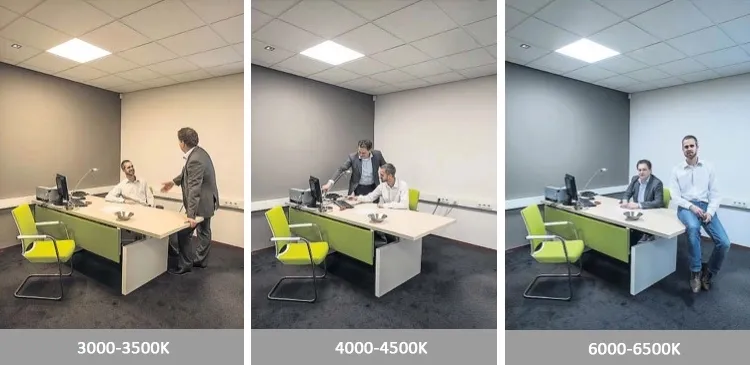

Lumen / CCT	100-120 lm/w		3000K / 4000K / 6000K
Protection	IP44	CRI >80	PF 0.5/0.9	Beam 120°
Material	Aluminum + PMMA/PS		White / Silvery Frame

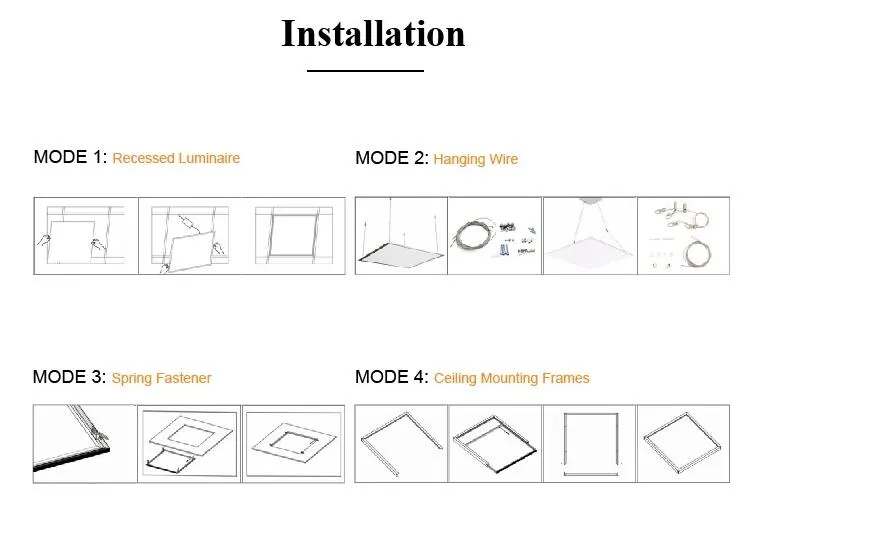

Installation	Recessed / Surface Mounted / Suspended

Product Visuals

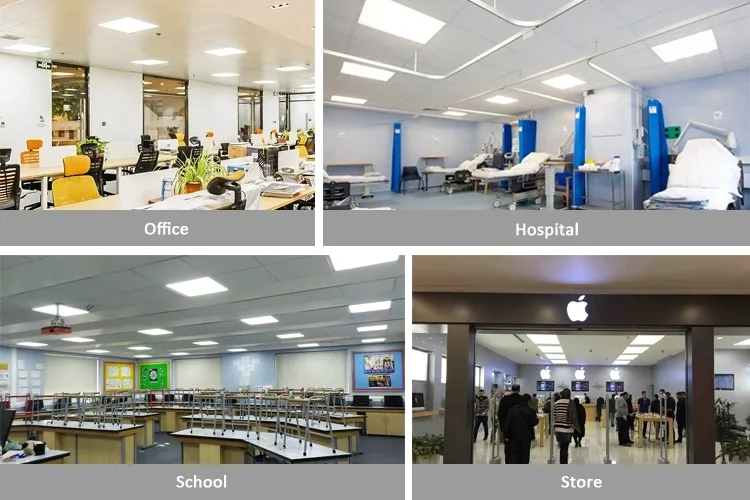

Applications

This Ultra Slim LED Panel is an ideal replacement for traditional lighting in various professional environments:

Office and University/School Lighting

Hospital and Library Environments

Commercial Showrooms and Hotels

Jewelry Counters and Display Cases

Restaurants and Amusement Parks

Modern Home Kitchens and Corridors

Frequently Asked Questions

Can I request a sample for testing?

Yes, we welcome sample orders to test and check quality. Mixed samples are also acceptable.

What is the typical lead time for orders?

Samples usually take 3-5 days, while mass production requires approximately 7-10 days depending on the order volume.

Is there a Minimum Order Quantity (MOQ)?

We maintain a low MOQ of just 1 piece for standard models.

How do you handle shipping and delivery times?

Samples are typically shipped via DHL, UPS, or FedEx, arriving in about 3-5 days.

How is the warranty service managed?

We offer a 3-5 year warranty. If a quality issue occurs during this period, we will provide a new replacement panel or driver free of charge.

Can you customize products with our logo or specific drivers?

Yes, we provide OEM services, including logo engraving and the use of specific brand drivers like Lifud upon request.
