Basic Specifications
Model NO.
EN50100DFZ20W1194
Emitting Color
3000K/4000K/6000K
Voltage
AC220-240V/AC100-277V
Dimming
0-10V/Dali/Triac Dimmable
LED Chip
Epistar SMD 2835 - 240PCS

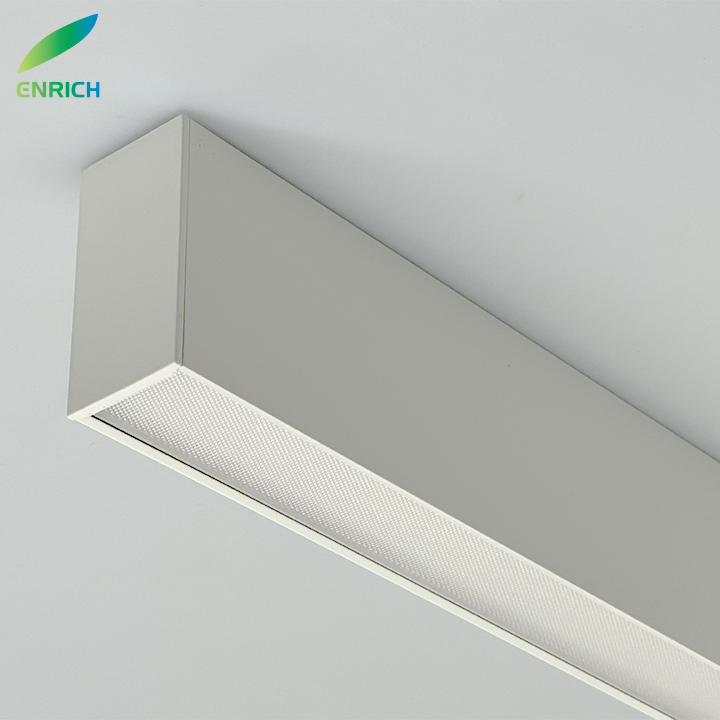

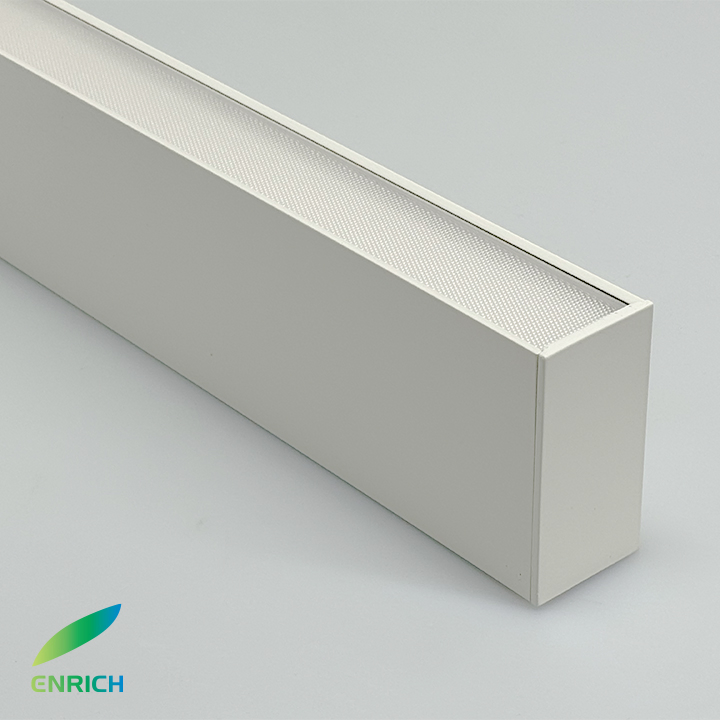

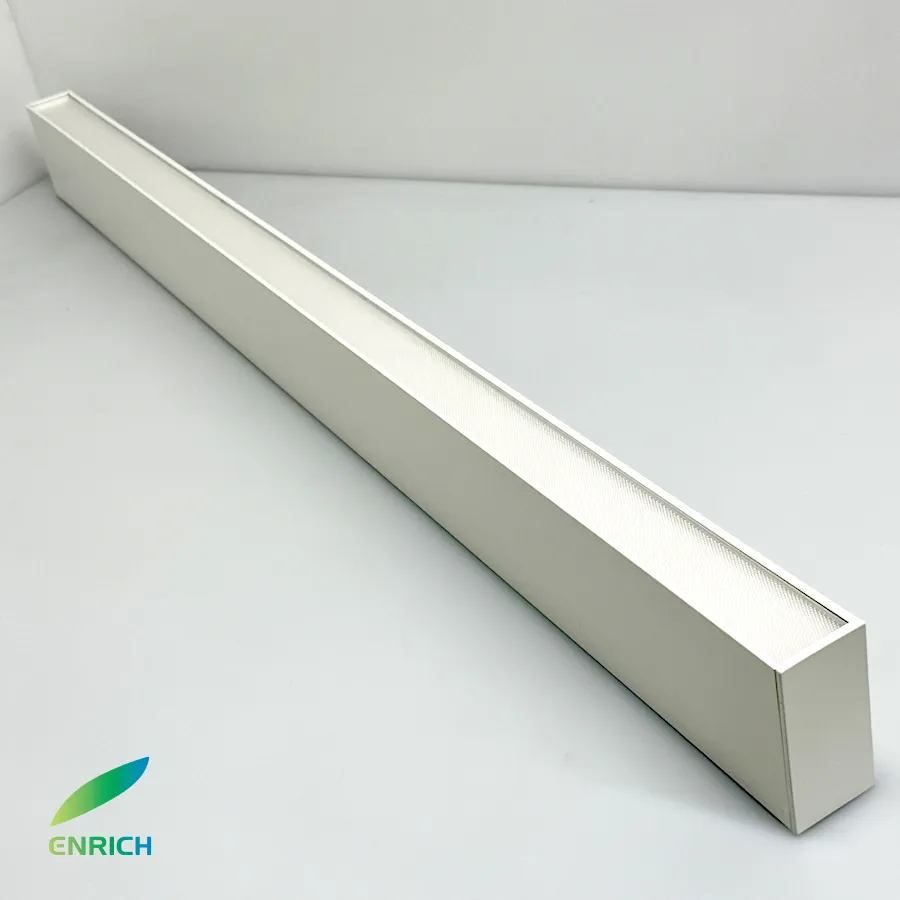

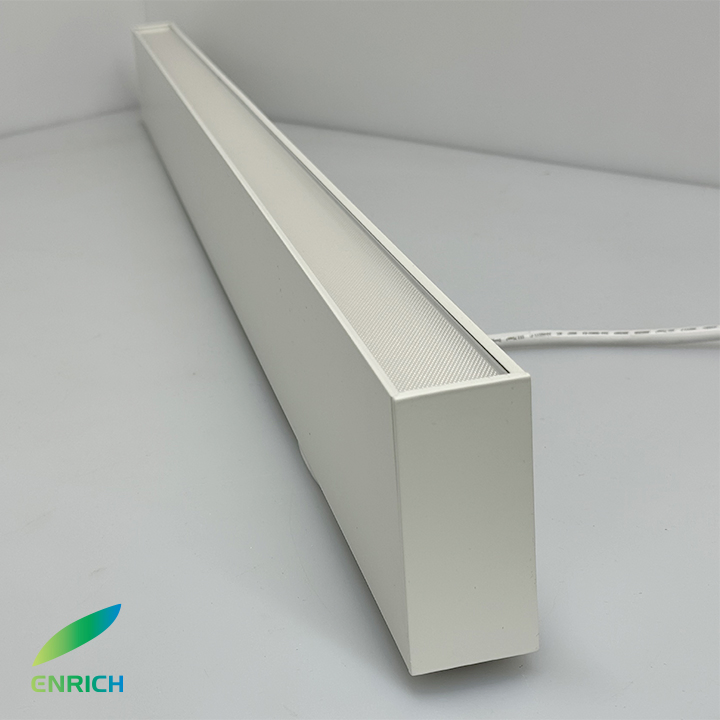

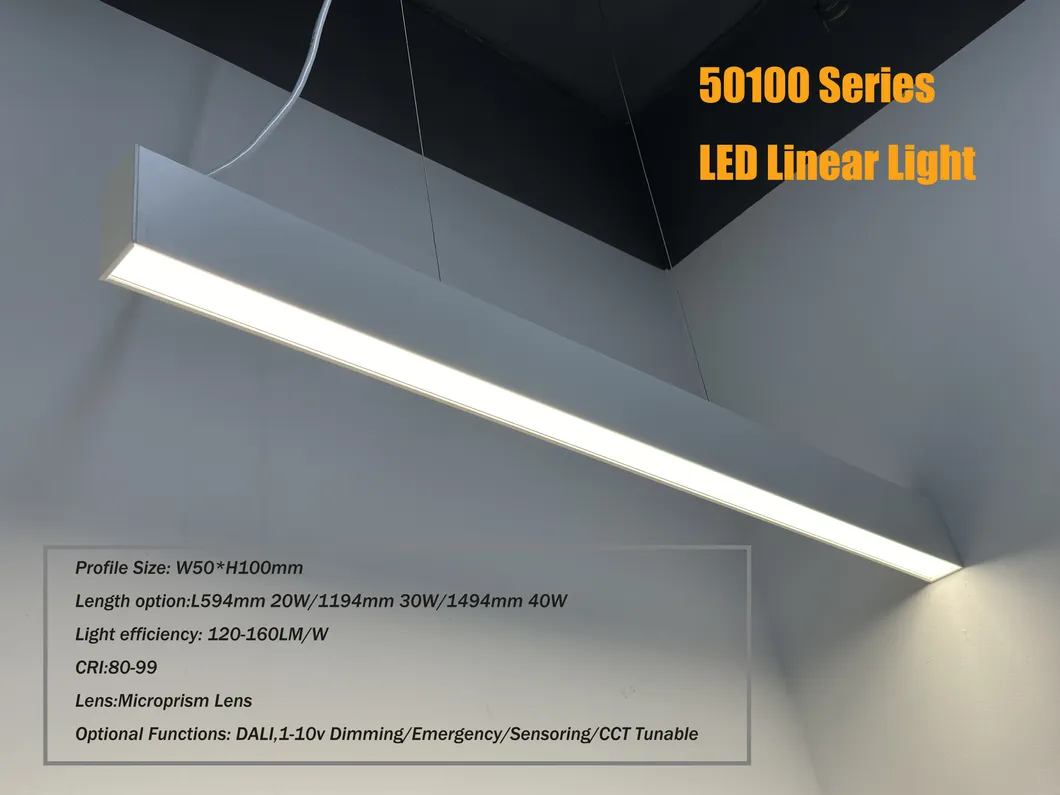

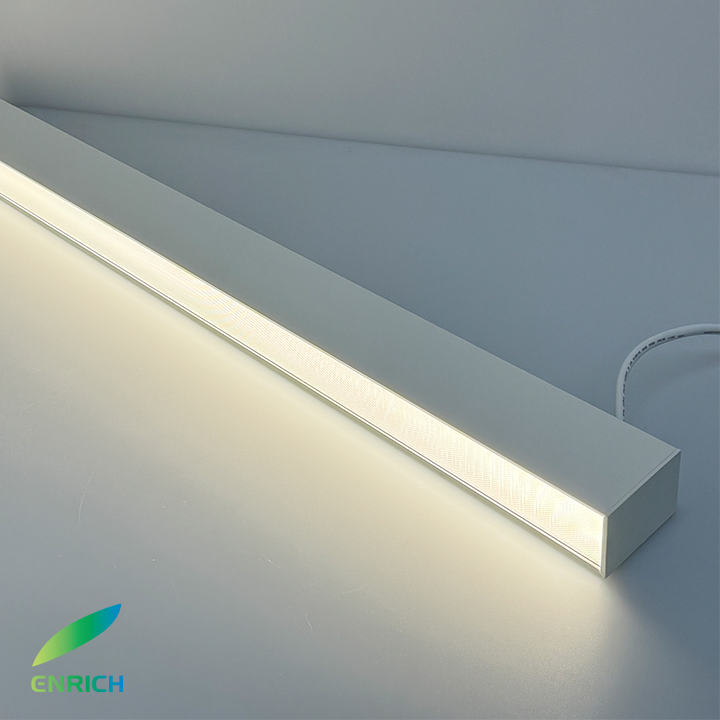

50100 Series LED Linear Light
Key Features:

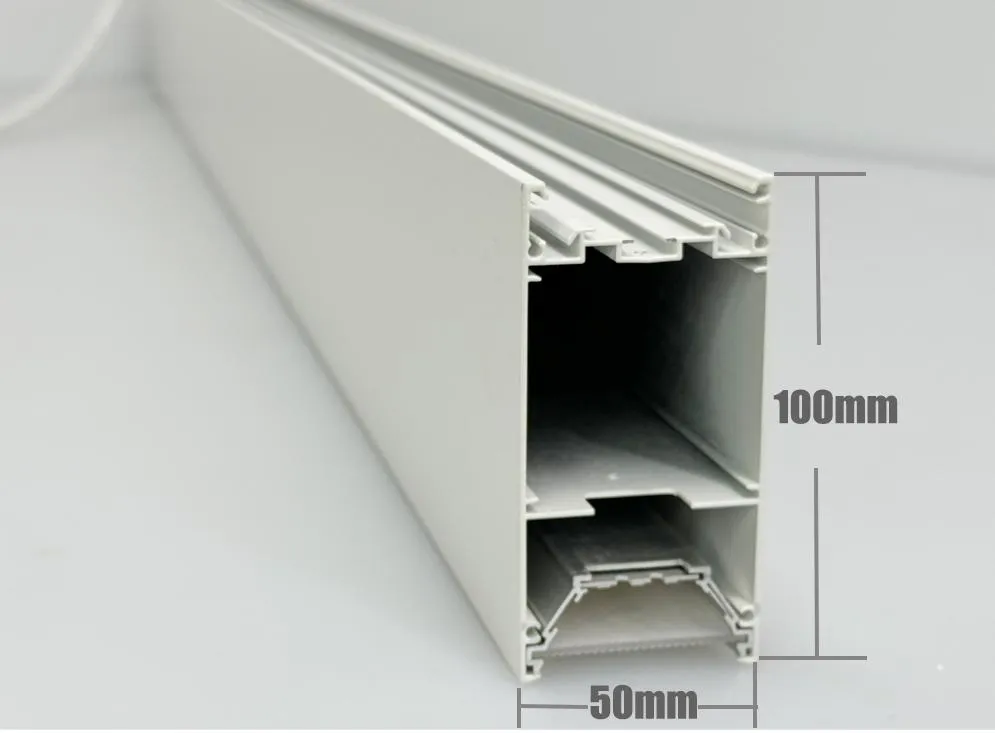

- Popular W50mm x H100mm aluminum profile design.
- Ultra-high efficiency: 120-160lm/W for superior brightness.

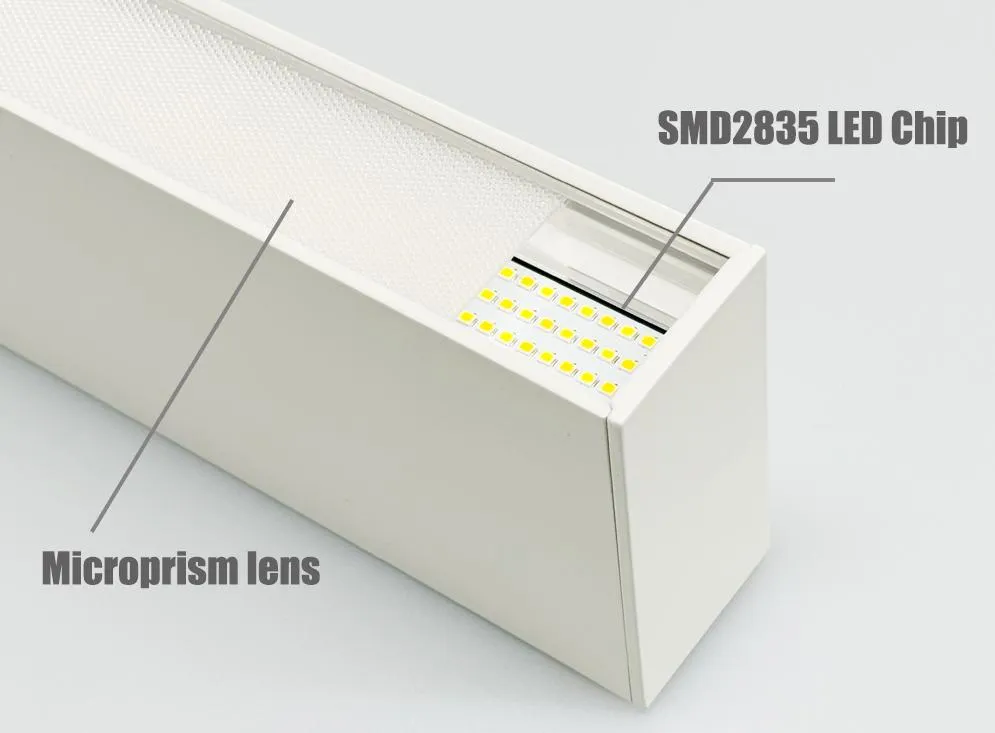

- Anti-glare design with microprism lens for eye comfort.
- Strong aluminum construction (1.5mm thickness).
- Multiple color temperatures: 3000K, 4000K, 6000K & CCT Tunable.
- Available in Black and White finishes.
- 5-year long-term warranty for peace of mind.
- Flicker-free driver with high power factor (>0.95).

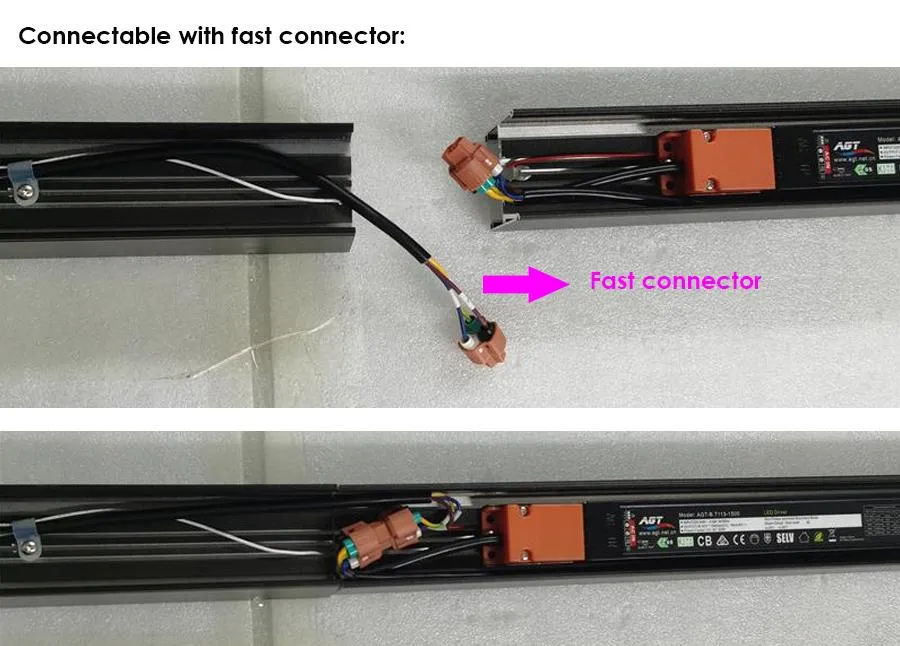

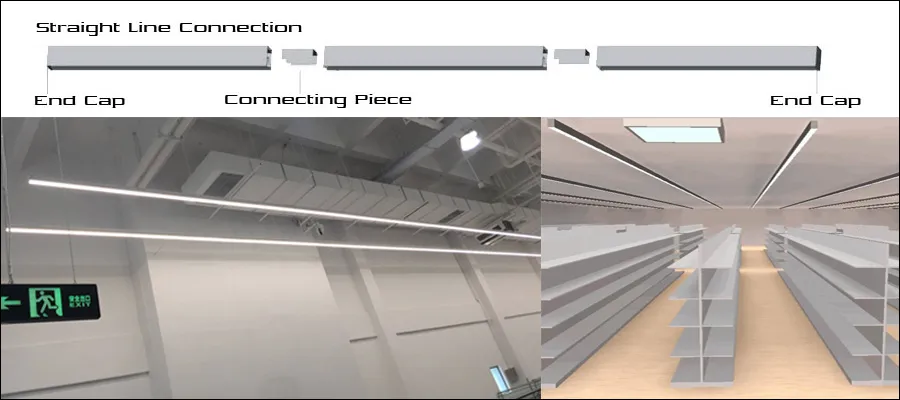

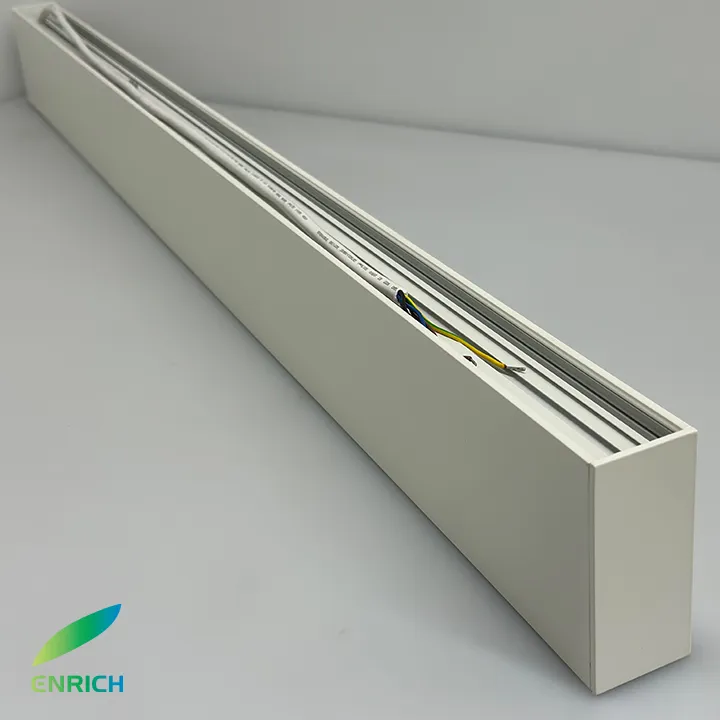

Seamless & Fast Connection
Our linear lights feature a seamless connection system using 4 metal pillars to ensure a tight, perfectly aligned aluminum body. With plug-in fast wiring connectors on both ends, only the first lamp in a run needs to be connected to the power source, making installation efficient and clean.
Product Datasheet
| Model Number |
Dimension |
Power |
Input Voltage |
CCT |
Shell Color |
| EN50100DFZ20W1194 |
L1194*W50*H100mm |
20W, 120LM/W |
AC100-277V |
3000K / 4000K / 6000K |
Black / White |
| EN50100DFZ36W1494 |
L1494*W50*H100mm |
36W, 120LM/W |
AC100-277V |
| EN50100DFZ40W2388 |
L2388*W50*H100mm |
40W, 120LM/W |
AC100-277V |
Installation Versatility
Easy to create continuous straight lengths or customized shapes for various architectural needs.

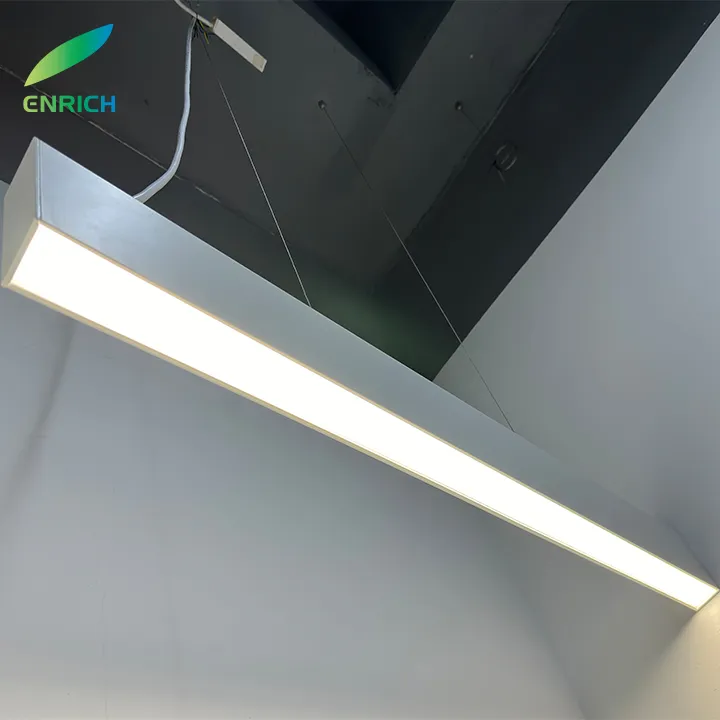

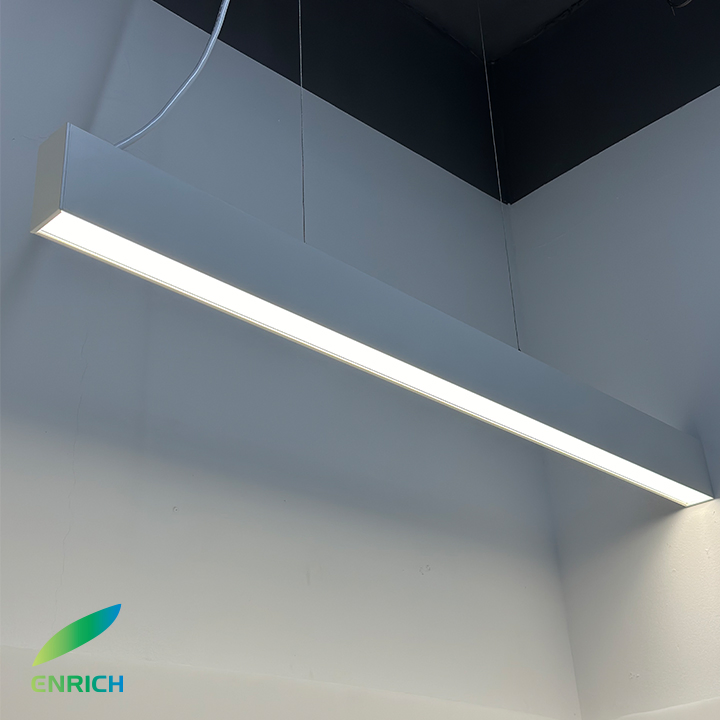

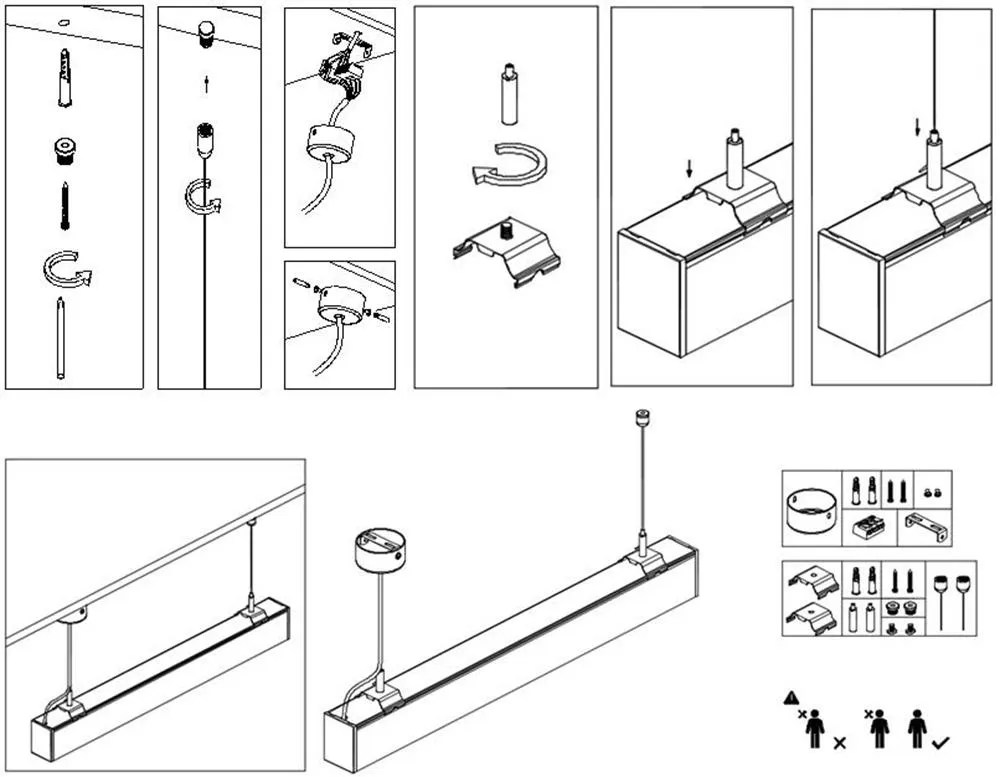

Suspended Mounting & Packaging

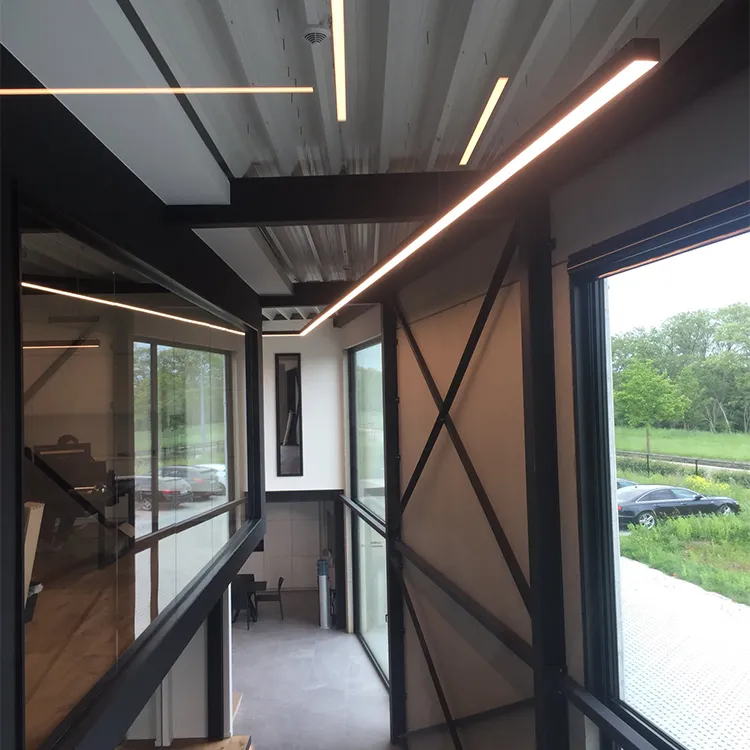

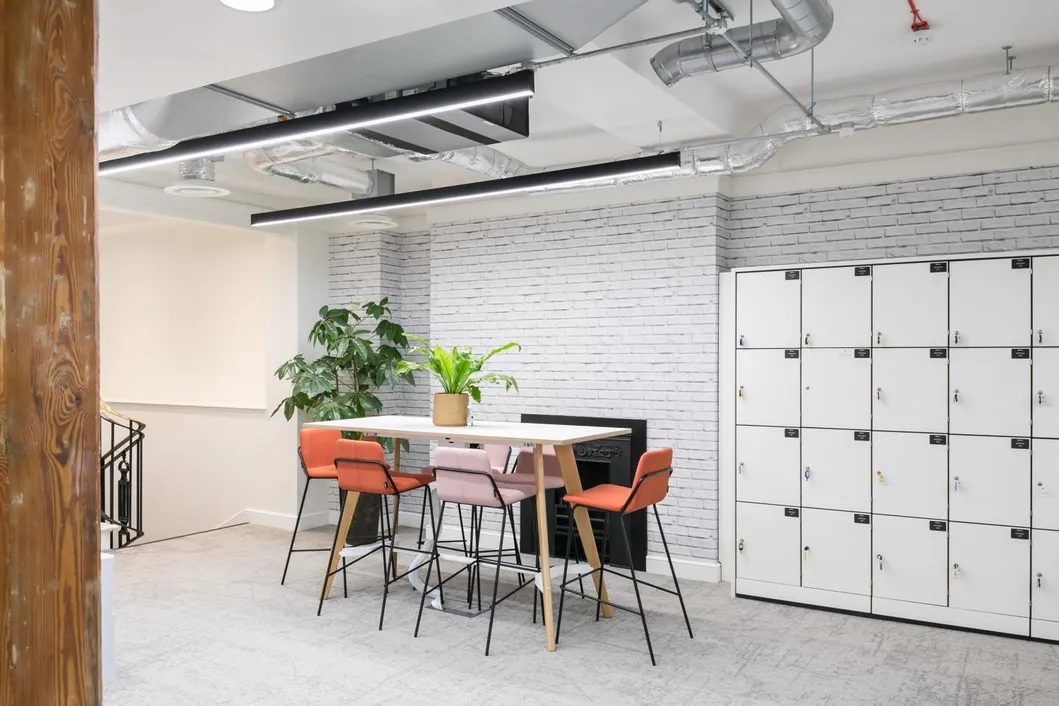

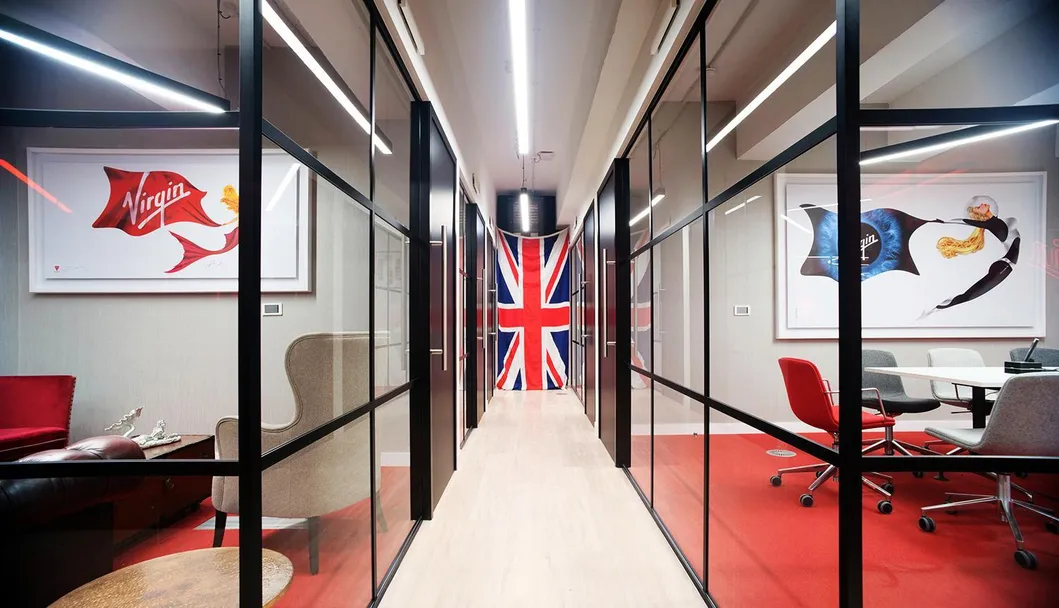

Wide Applications
An excellent choice for offices, restaurants, studios, stores, schools, hotels, and more.

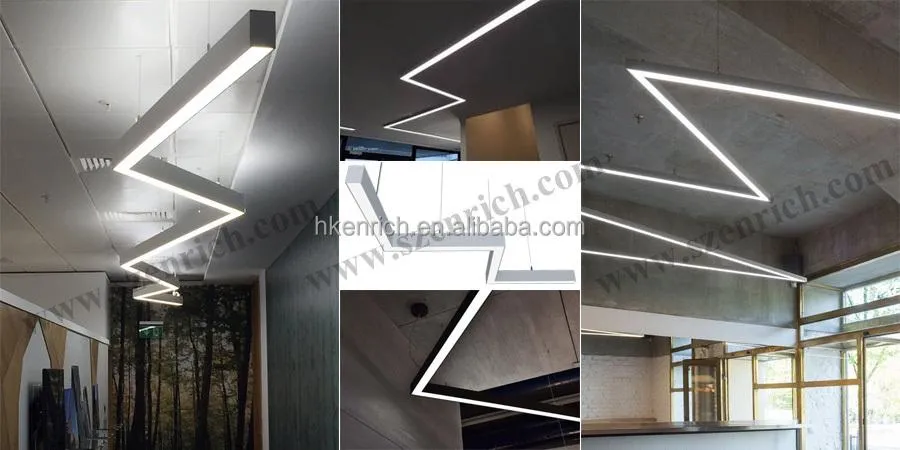

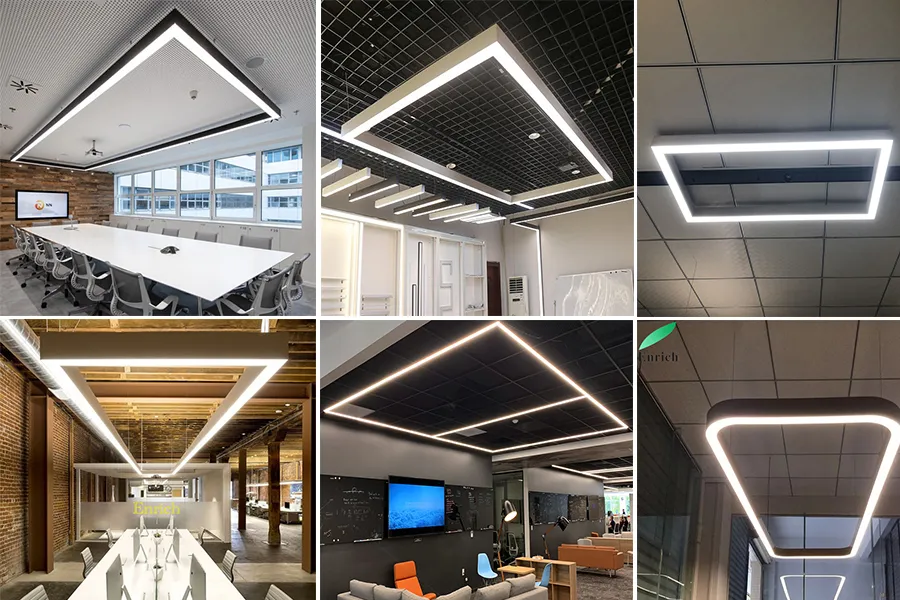

Creative Geometric Shapes
Exhibition Gallery
Frequently Asked Questions
What color temperatures are available for this linear light?
Standard color temperatures include 3000K (Warm White), 4000K (Natural White), and 6000K (Cool White). CCT color-tunable options are also available.
What is the warranty period for the 50100 series?
We provide a comprehensive 5-year warranty on all products in this series, based on a lifespan of over 50,000 hours (L80B10).
Can these lights be connected for long continuous runs?
Yes, they are designed for seamless connection using metal pillars and plug-in fast wiring connectors, allowing for long straight or geometric configurations.
What dimming protocols are supported?
The lights support multiple dimming options including 0-10V, DALI, and Triac dimming, as well as standard non-dimmable versions.
What materials are used in the construction?
The housing is made of high-quality aluminum profile (1.5mm thickness) for excellent heat dissipation, paired with a microprism lens for anti-glare performance.

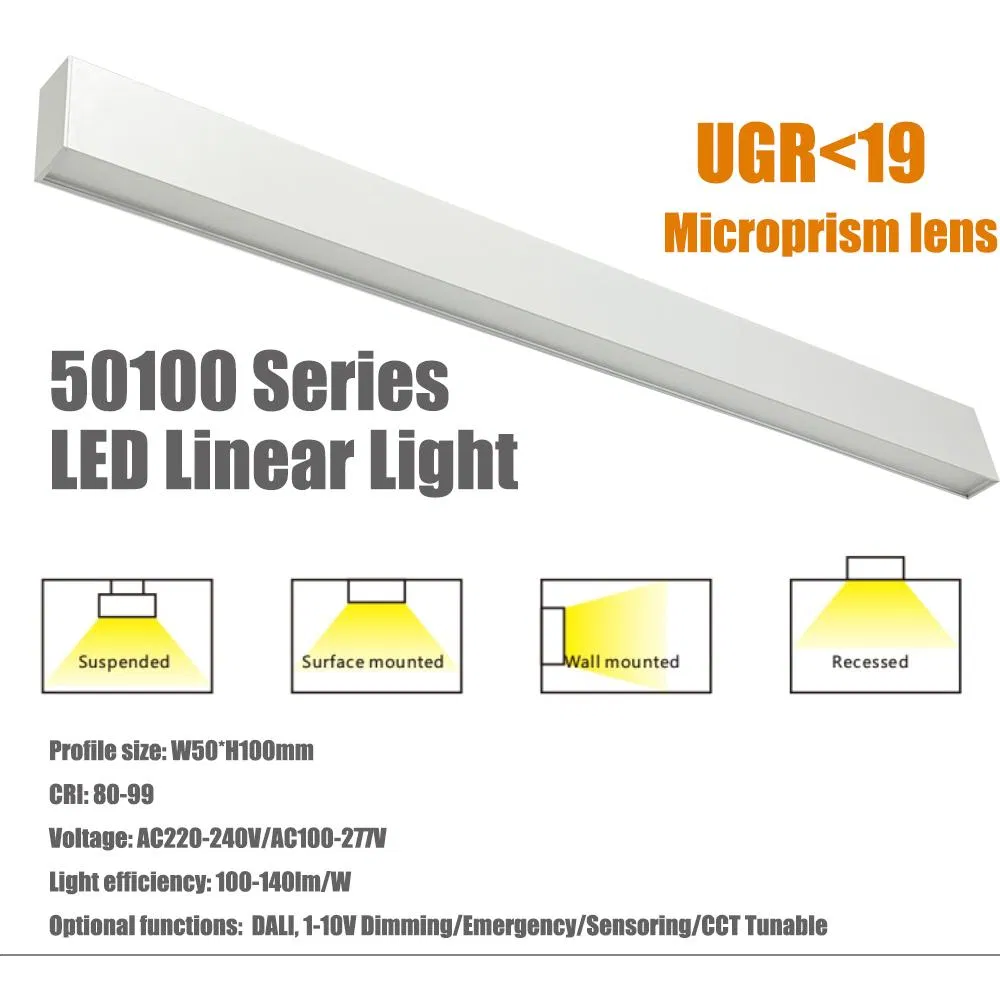

What mounting methods are available?
These linear lights are versatile and support both suspended (with steel wires) and recessed mounting installations.
